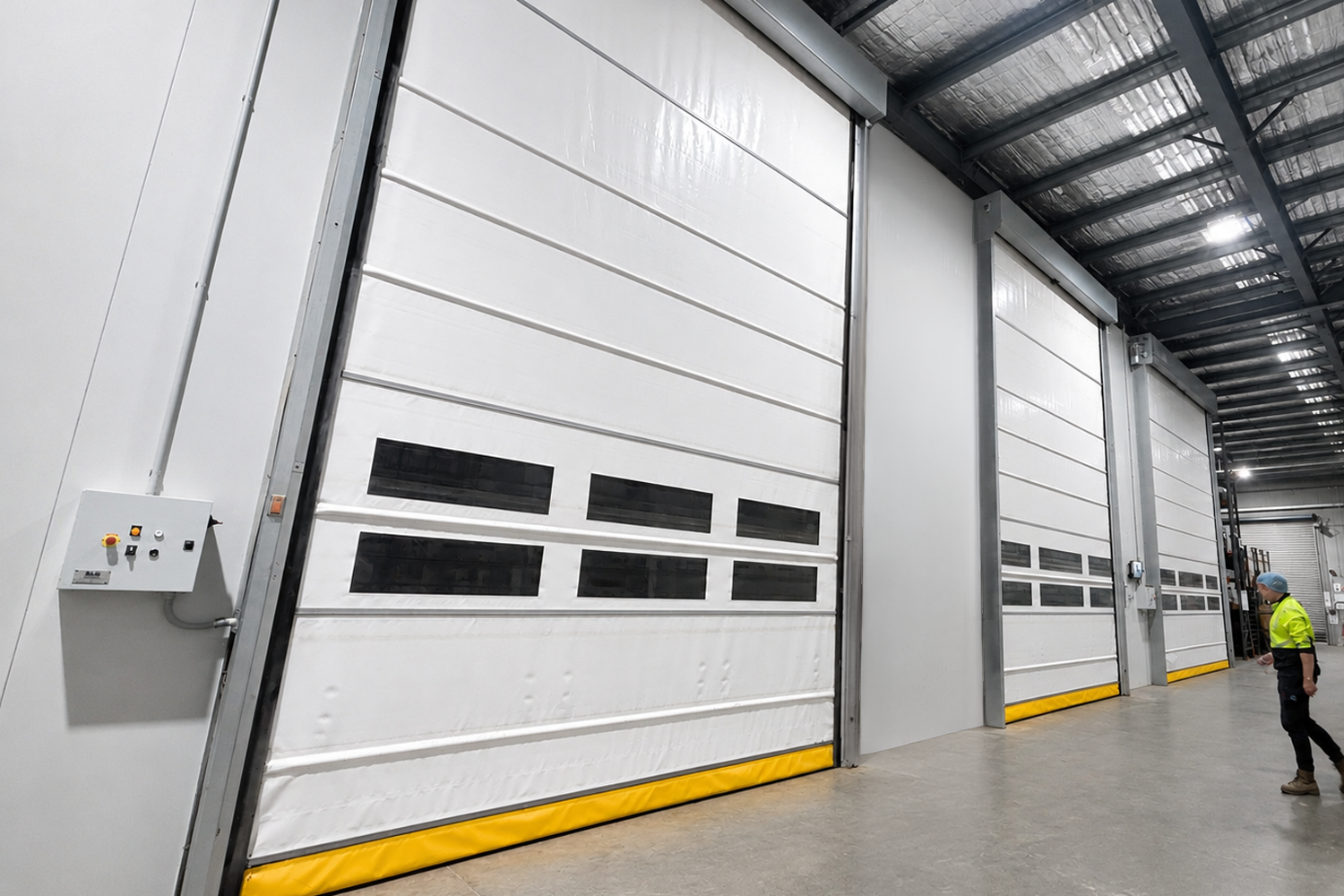

Large Opening Capacity
Designed for wider and taller openings while maintaining reliable high-speed operation up to 1.5 m/s.

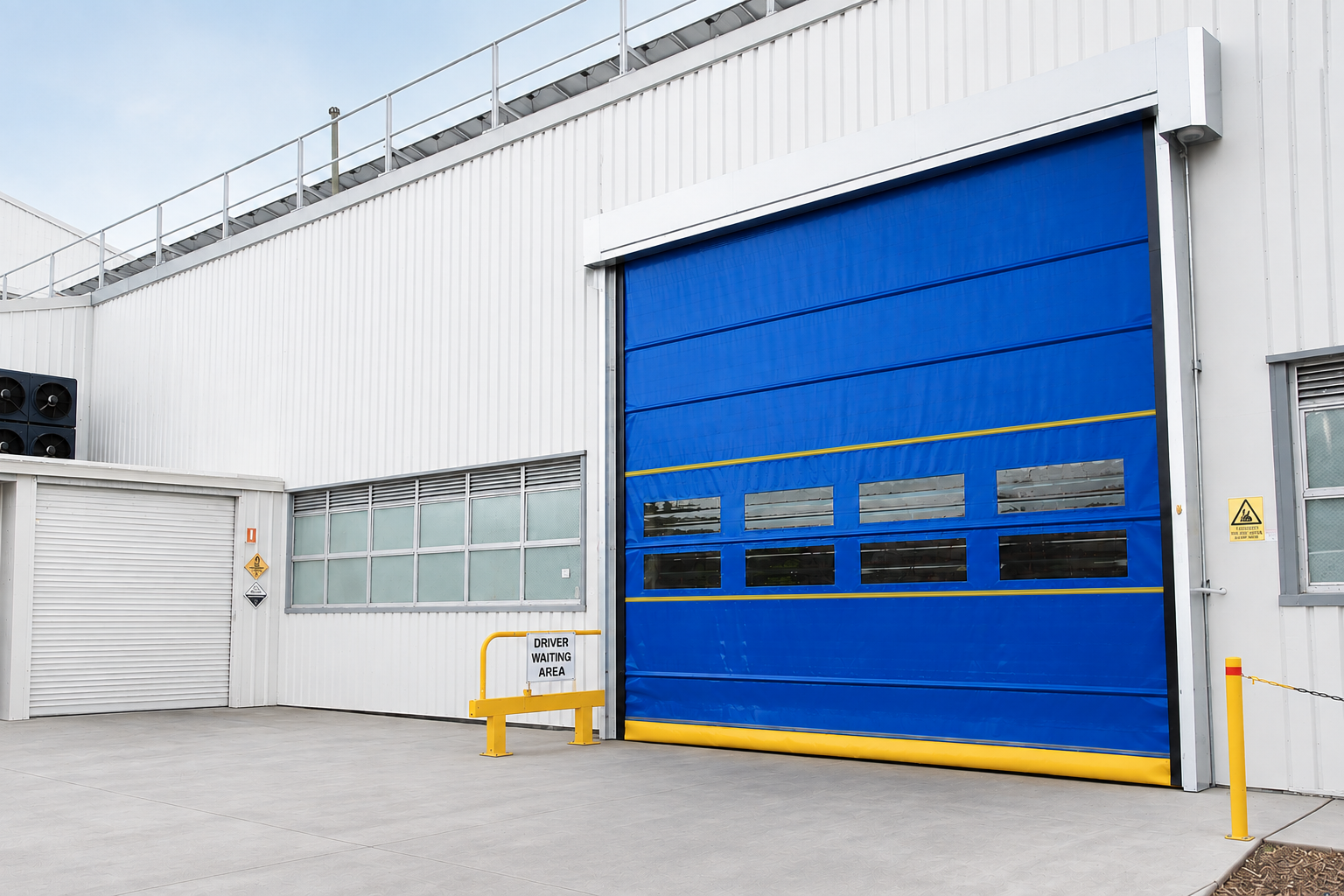

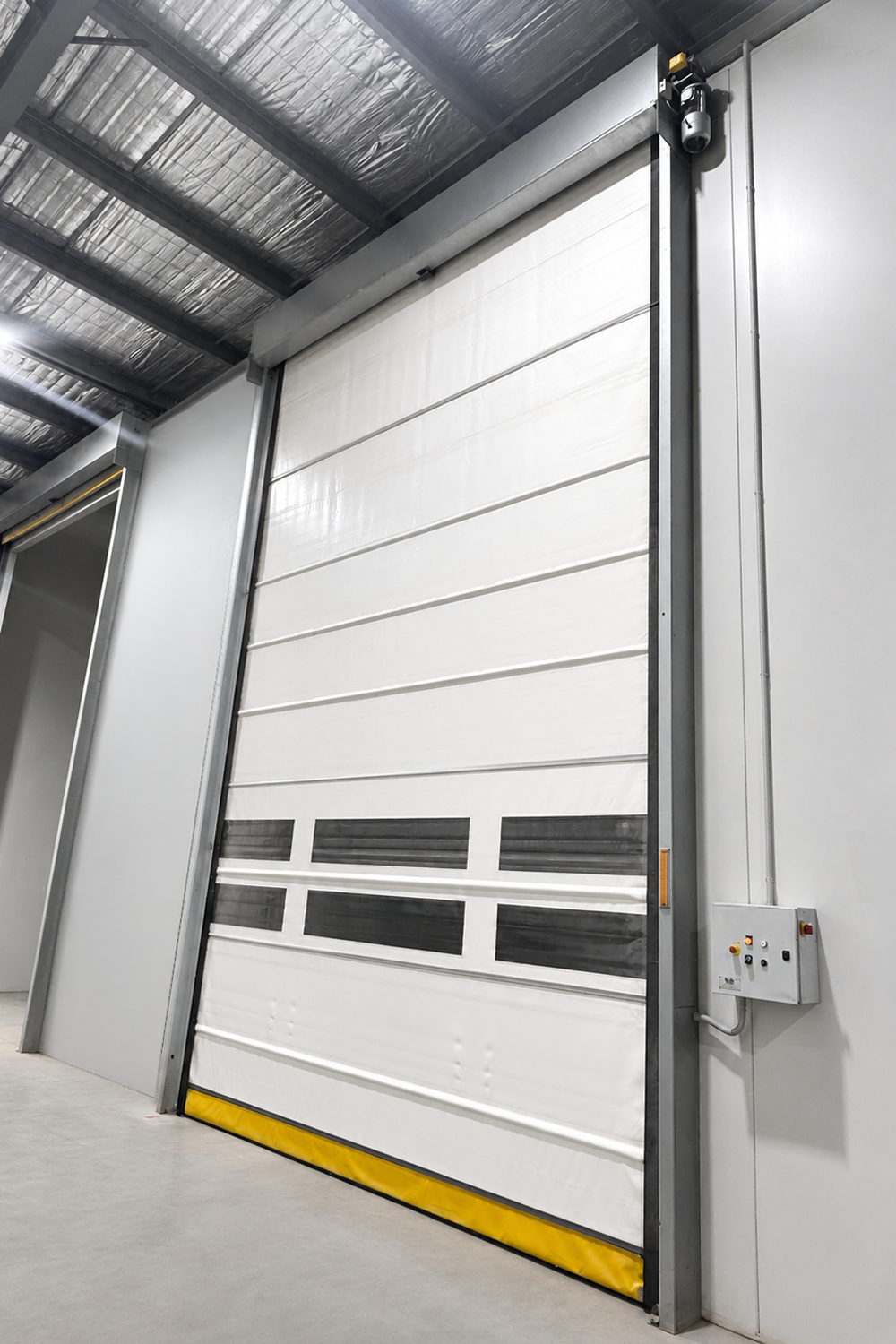

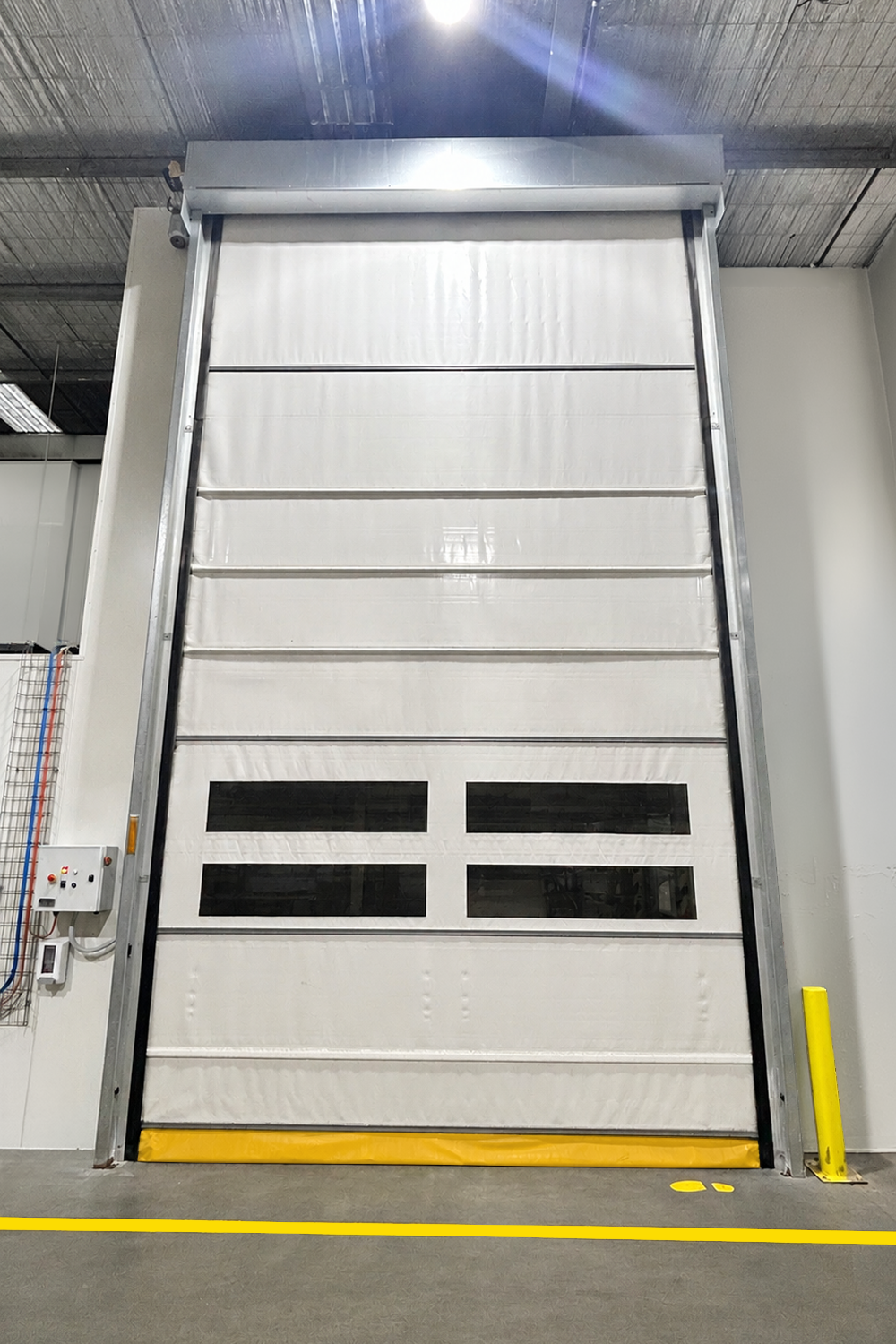

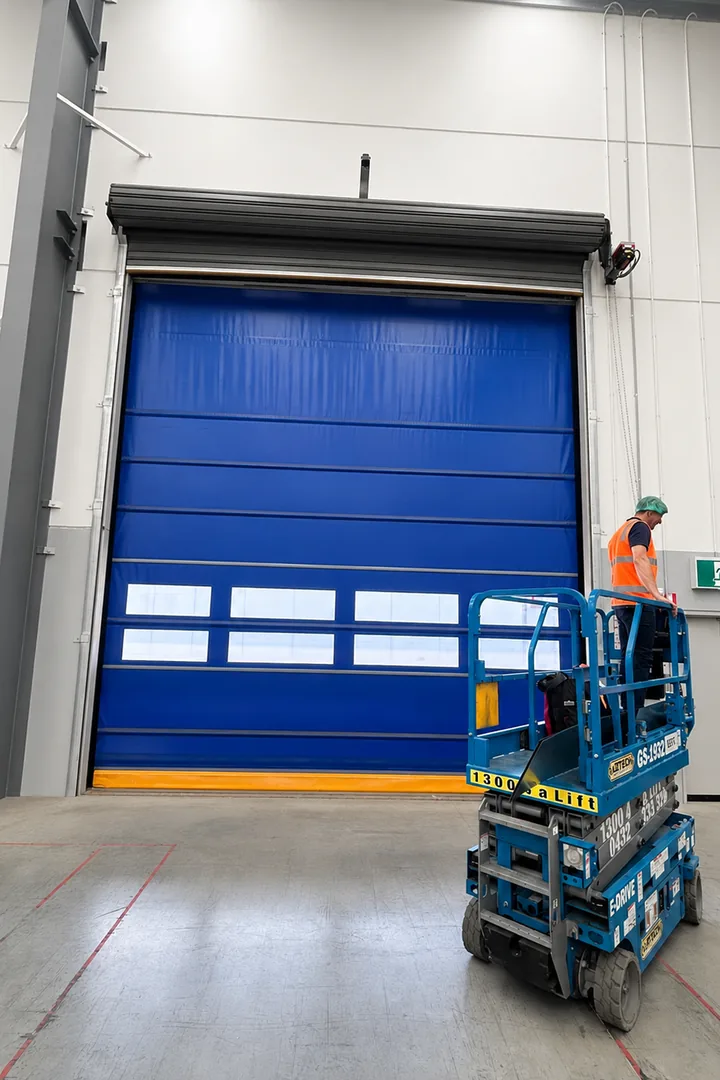

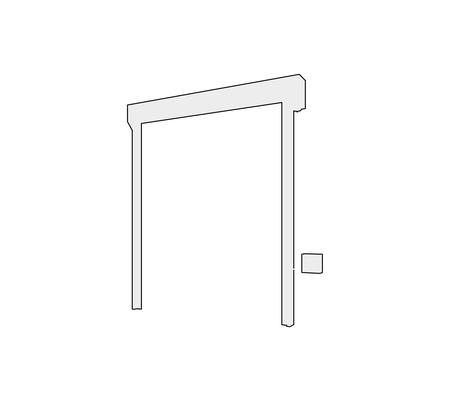

Industrial rapid door
Super Performance | SP01
Engineered for demanding industrial environments, the Super Performance Series is designed for larger openings and continuous operation. Reinforced construction delivers reliable long-term performance in logistics operations and demanding industrial facilities.
Key Benefits
- Designed for larger and taller industrial openings
- Reinforced construction for demanding environments
- Fast and reliable high-cycle operation
- Low-maintenance system with simplified installation
Key Features

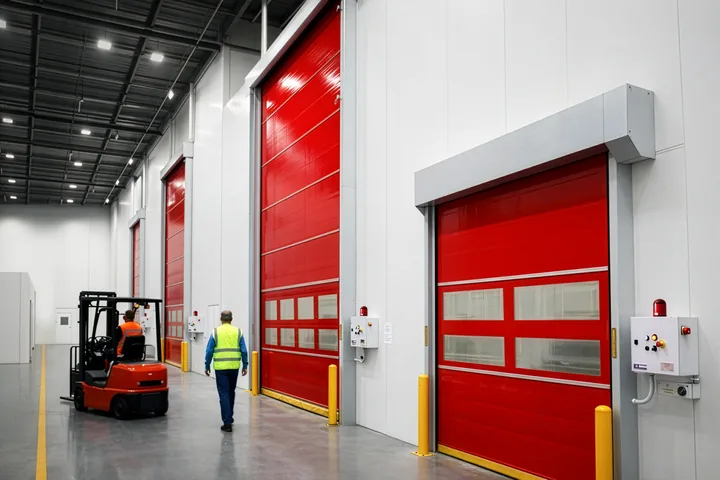

The SP01 combines reinforced heavy-duty construction with a larger opening capacity, supporting demanding industrial sites, frequent vehicle movement and exposed access points.
Its robust curtain and guide system improves durability under heavier operating conditions while maintaining reliable rapid door performance for logistics, manufacturing and high-use facilities.
Heavy-Duty Construction
Reinforced structure engineered for demanding industrial environments and intensive traffic.
Fibreglass Reinforcement
Flexible fibreglass stiffeners absorb impact and rebound under pressure for improved durability.
Modular Curtain System
Designed for efficiency, replaceable curtain sections simplify maintenance and reduce downtime during repairs.
Integrated Safety
Safety edge and photoelectric sensors support safer, more reliable operation in high-traffic industrial areas.
IP54 / IP65 Options
Industrial-rated motor and control options available for harsh operating environments.
Technical Specifications & Available Options
Technical specifications
| Recommended Door Size | Up to approx. 6.0 m W × 7.5 m H |
|---|---|
| Application | Internal / External |
| Operating Temperature | 0°C to +50°C |
| Opening Speed | Up to 1.5 m/s |
| Closing Speed | Up to 0.6 m/s |
| Power Supply | 415 V / 3-phase |
| Curtain Material | Reinforced PVC-coated polyester |
| Curtain Construction | Segmented replaceable curtain design |
| Reinforcement | Steel pipe / Flexible fibreglass stiffeners |
| IP Rating | IP54 standard / IP65 optional |
Standard Door Colours
Yellow

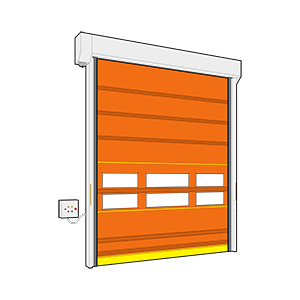

Orange

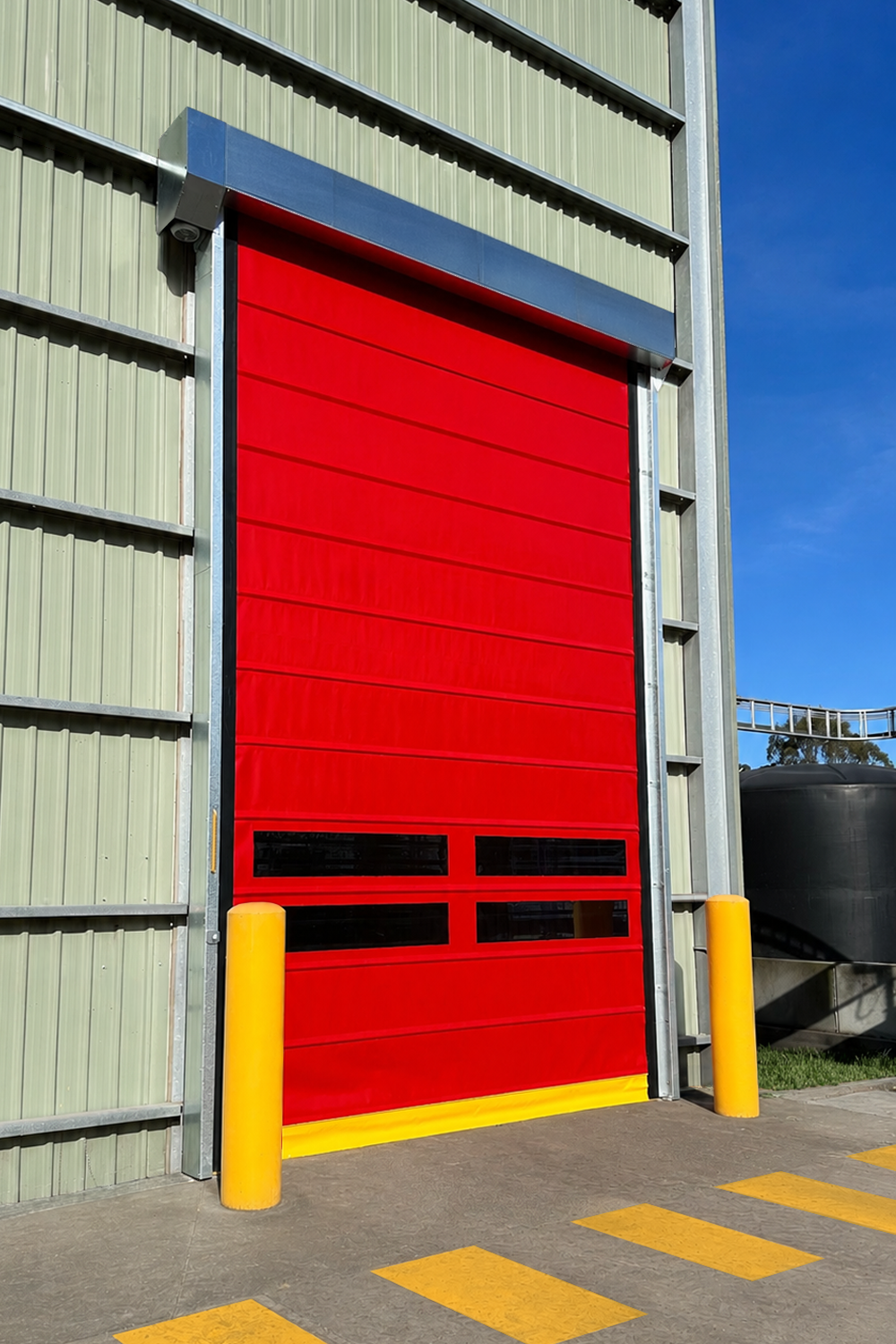

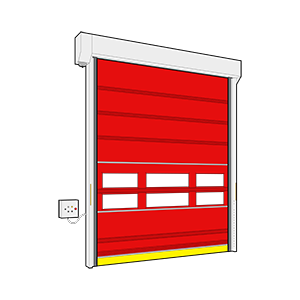

Red

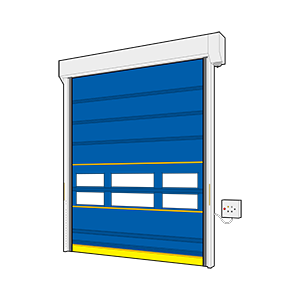

Blue

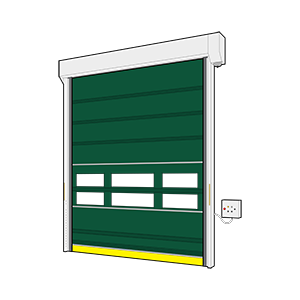

Green

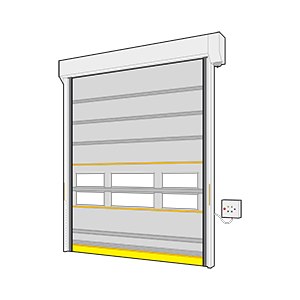

Grey
Ready to configure your SP01?
Talk to our team about opening size, duty cycle, site conditions and activation requirements.
We’ll help specify a rapid door system suited to your operation.
