Insulated Curtain System
Insulated curtain construction helps reduce temperature transfer and energy loss in cold storage environments.

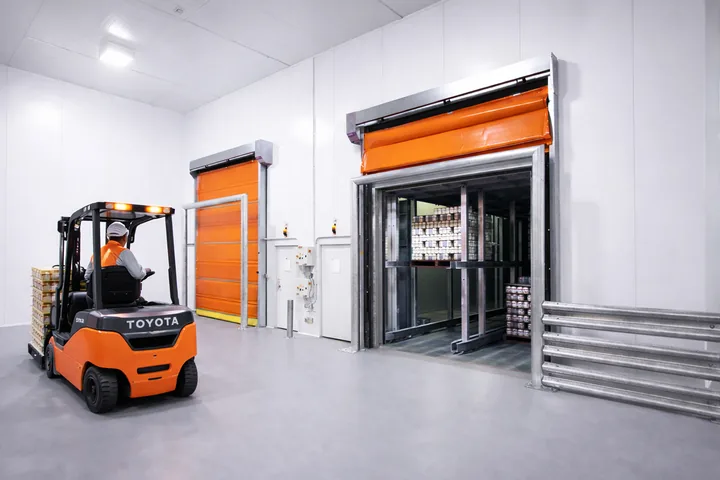

Controlled Environment

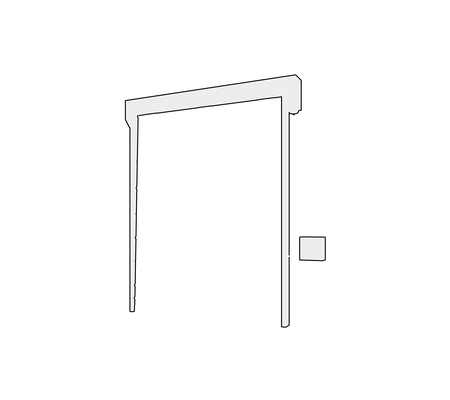

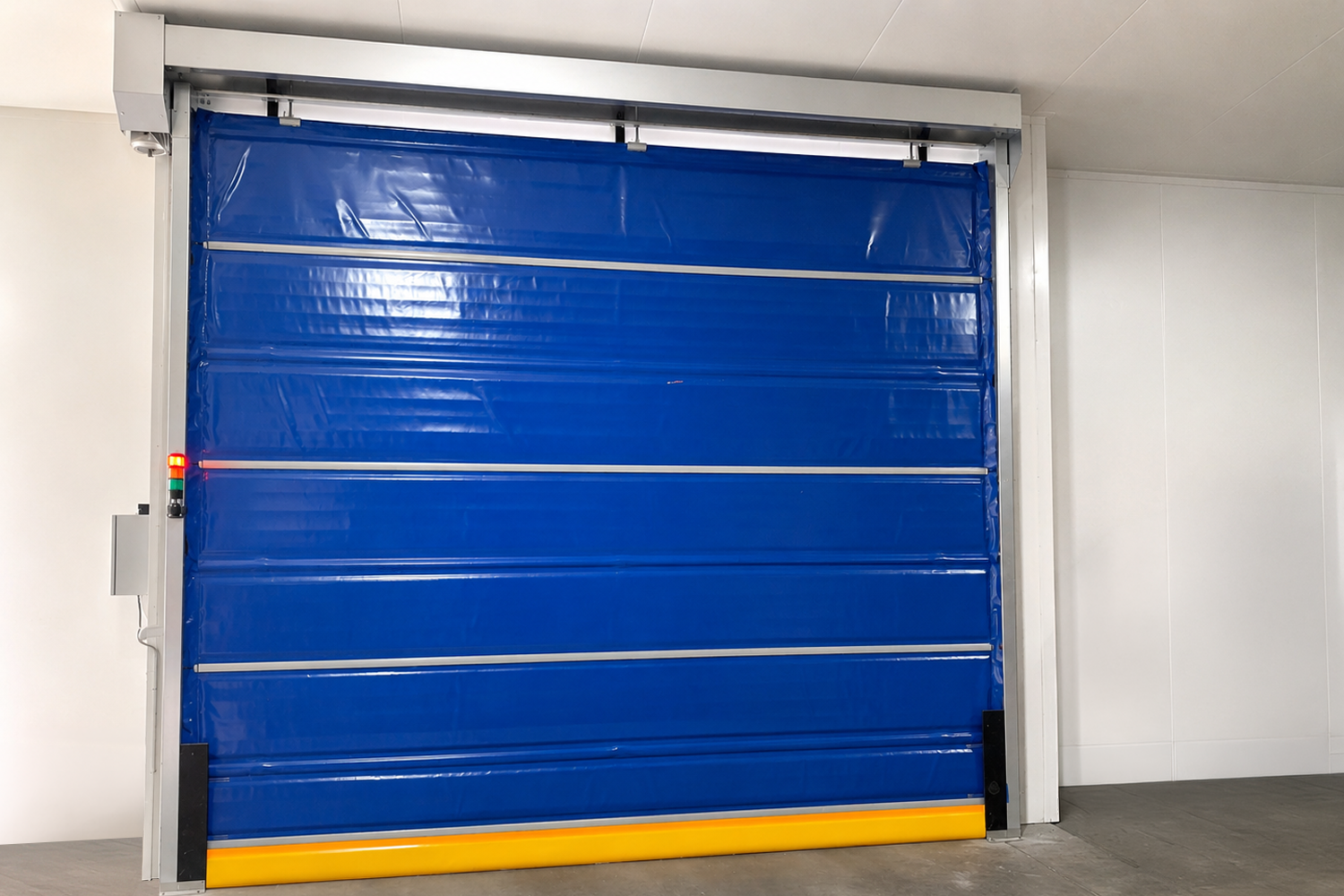

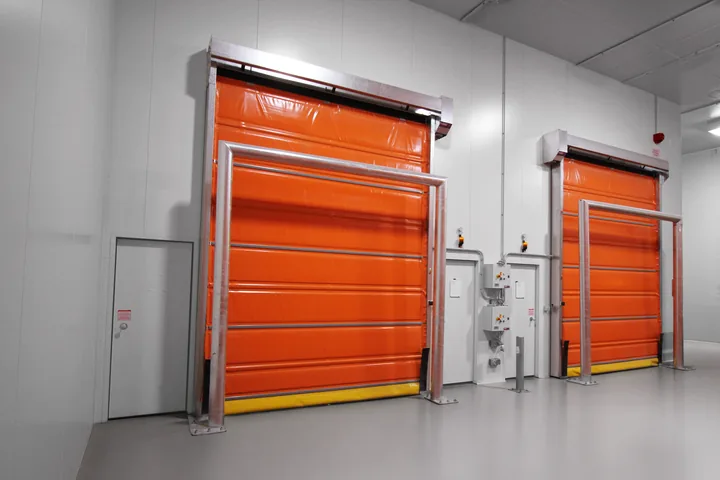

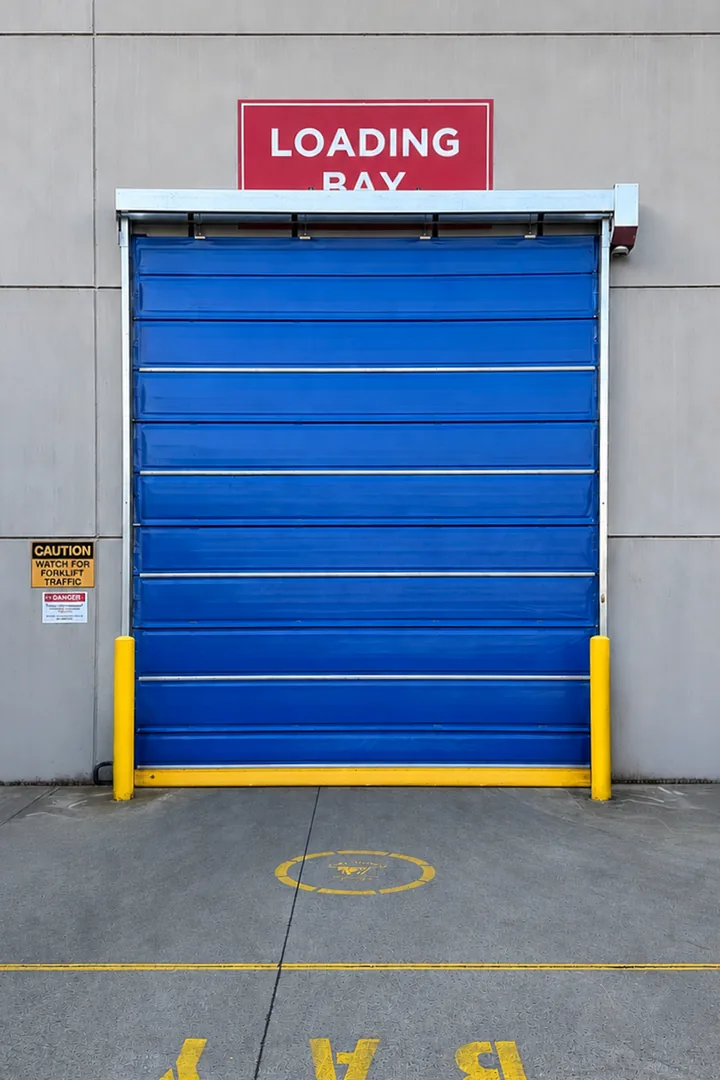

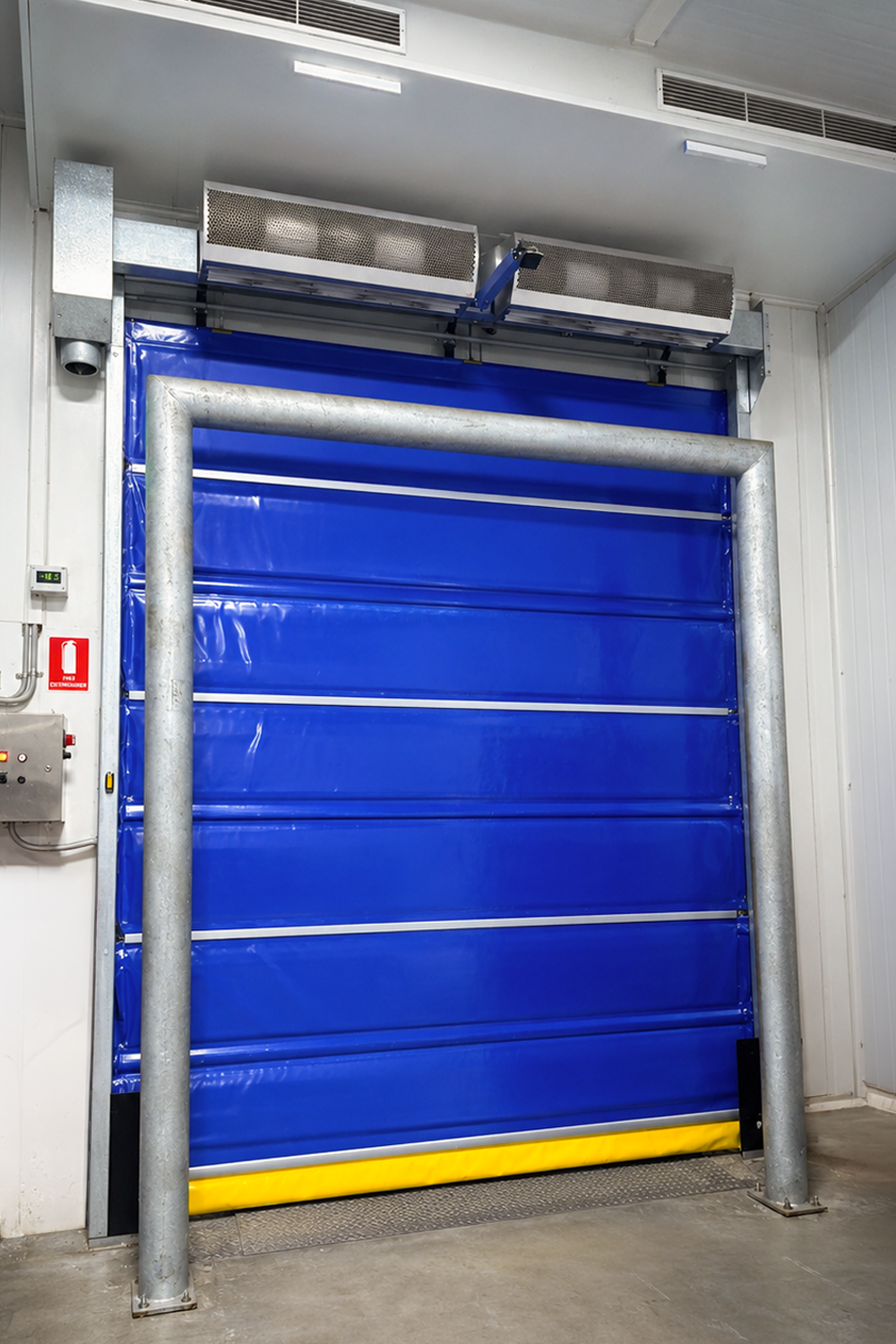

Freezer | FR01
The Freezer Series is engineered for cold storage environments requiring reliable insulation and operational efficiency. Its folding curtain system helps minimise ice build-up while maintaining dependable performance in refrigeration environments.
Key Benefits
- Suitable for freezer and cold storage environments
- Operating temperatures from -40°C to +1°C
- Optional single or double insulation systems
- Folding system reduces curtain ice build-up
Key Features
The FR01 combines insulated curtain construction with freezer-suitable detailing to support cold storage, freezer and temperature-controlled environments.
Its folding operation helps reduce ice build-up around the curtain and upper mechanism, while heated guide systems support reliable operation, minimise temperature loss and maintain efficient cold-chain access.
Cold-Chain Efficiency
Helps maintain temperature control and supports efficient movement between freezer, coolroom and production zones.
Heated Guide System
Heated cold storage guides support freezer operation and help minimise ice build-up around the side guides.
Modular Curtain System
Designed for efficiency, replaceable curtain sections simplify maintenance and reduce downtime during repairs.
Integrated Safety
Photoelectric sensors support safer, more reliable operation in low-temperature environments.
Folding Door Configuration
Folding operation helps reduce ice build-up around the curtain and upper mechanism.
Technical Specifications & Available Options
Technical specifications
| Recommended Door Size | Up to approx. 4.0 m W × 5.0 m H |
|---|---|

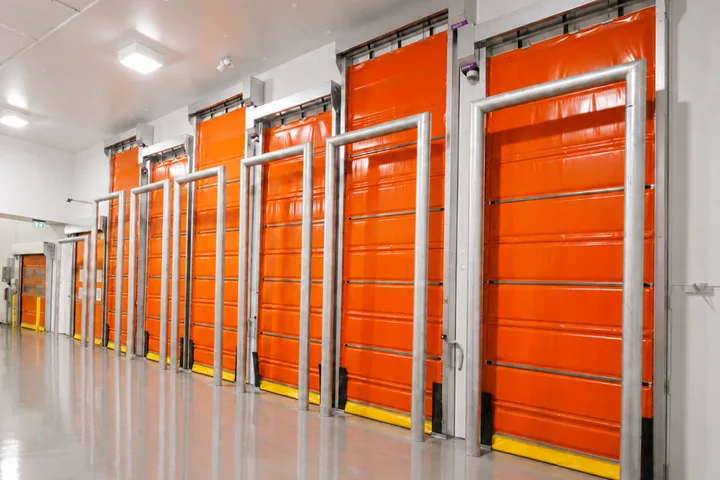

| Application | Internal cold storage / freezer environments |
| Operating Temperature | −40°C to +1°C |
| Opening Speed | Up to 1.5 m/s |
| Closing Speed | Up to 0.6 m/s |
| Power Supply | 240 V / 1-phase, 415 V / 3-phase |
| Curtain Material | Single / Double insulated PVC-coated polyester |
| Curtain Construction | Segmented rapid folding curtain design |
| Reinforcement | Flexible fibreglass stiffeners |
| IP Rating | IP54 standard / IP65 optional |
Standard Door Colours

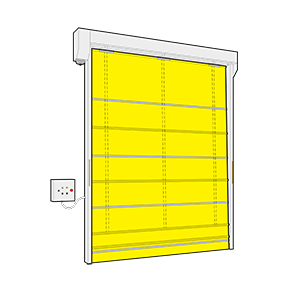

Yellow

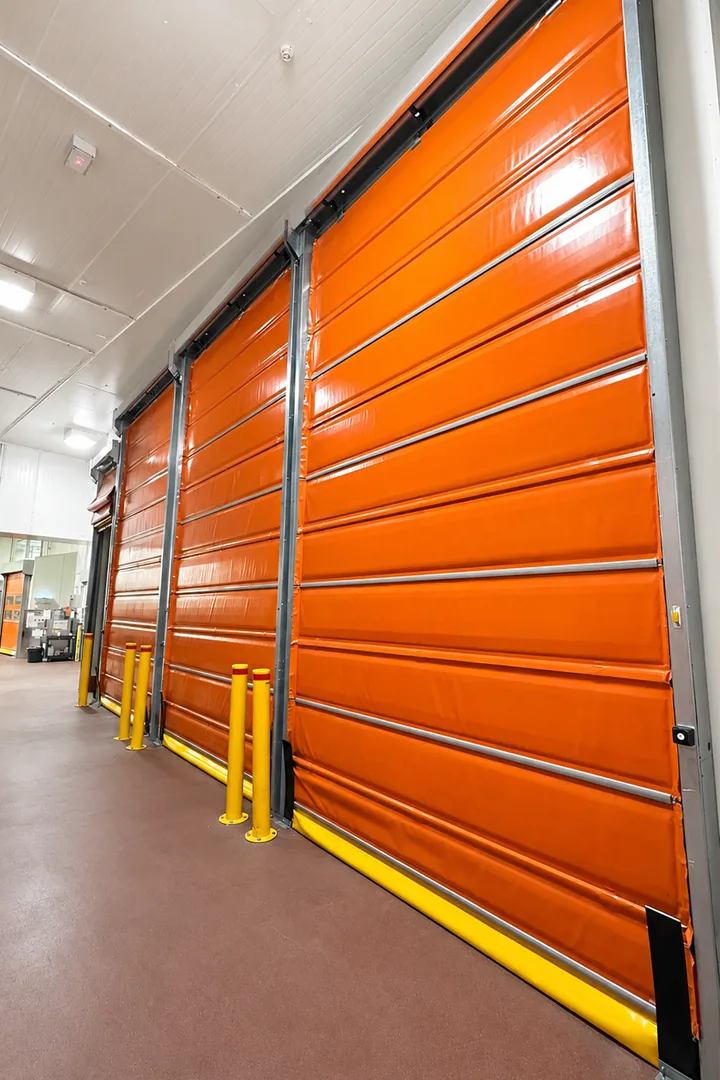

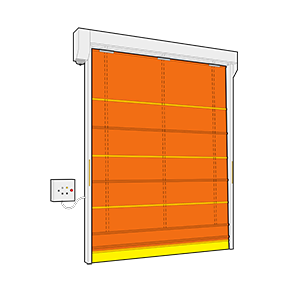

Orange

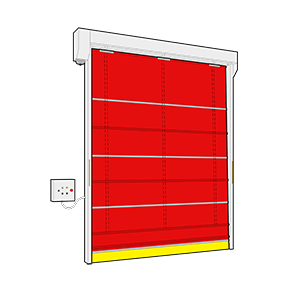

Red

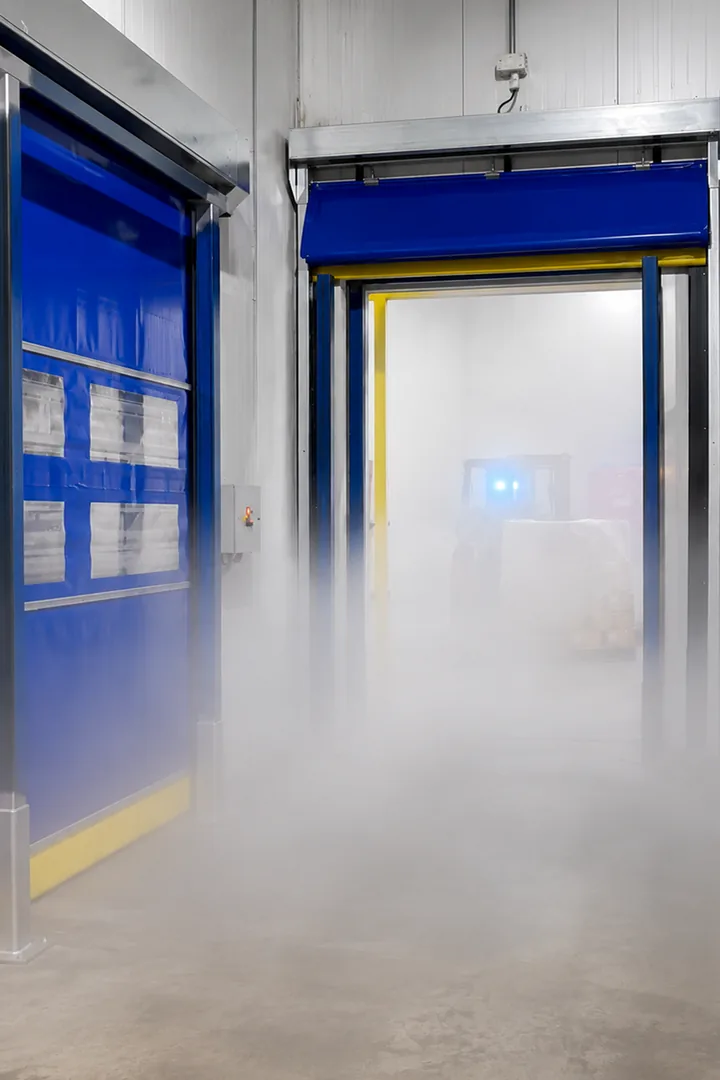

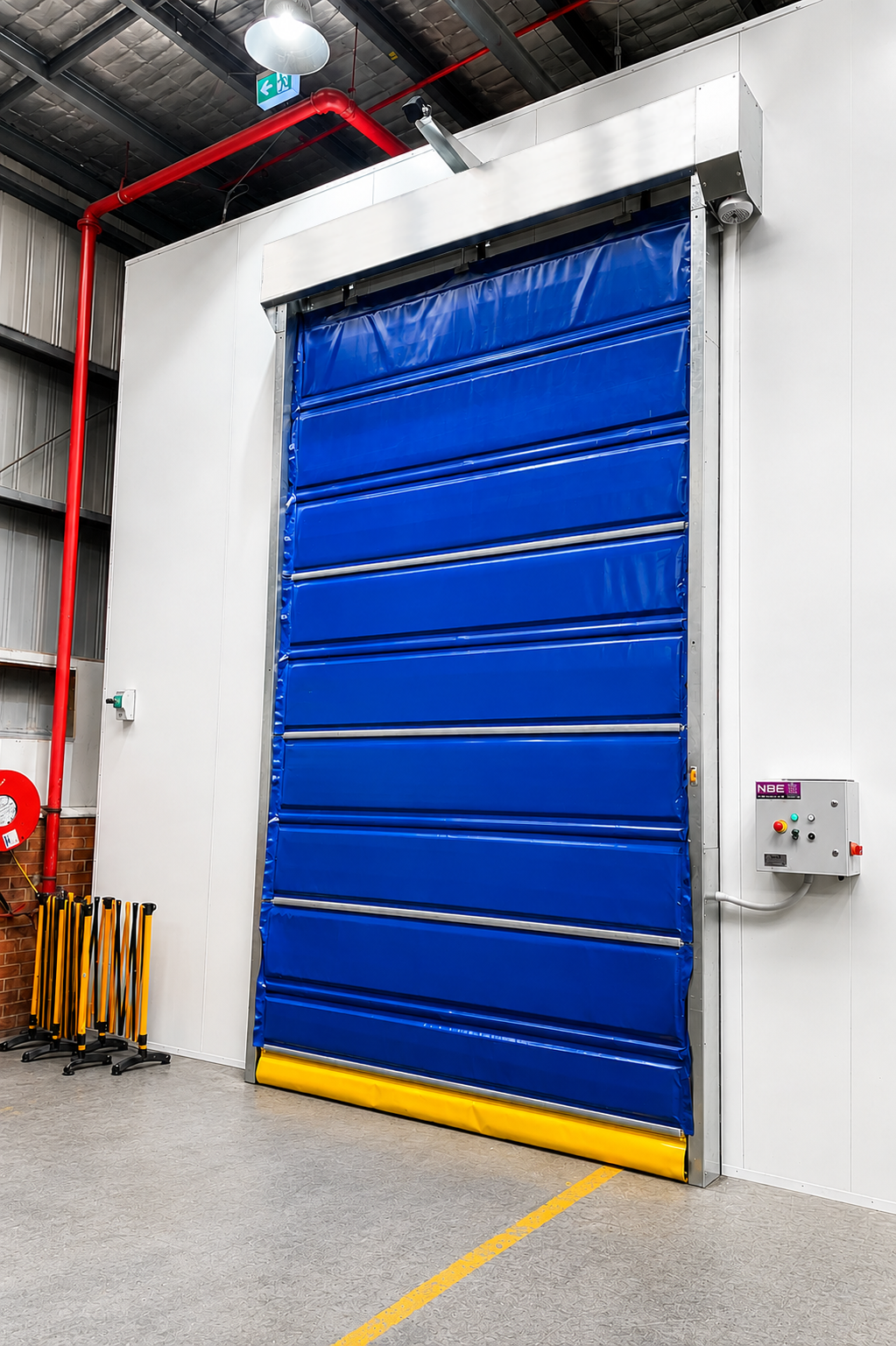

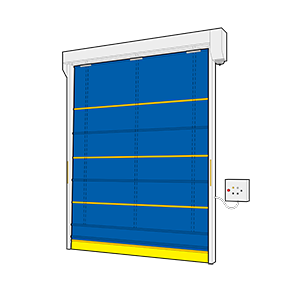

Blue

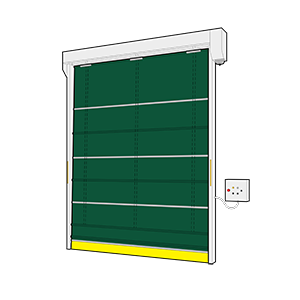

Green

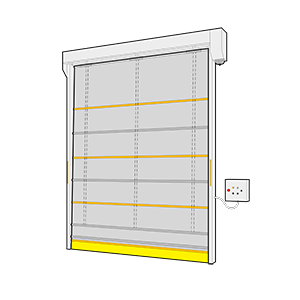

Grey
Ready to configure your FR01?
Talk to our team about opening size, duty cycle, site conditions and activation requirements.
We’ll help specify a rapid door system suited to your operation.
