High-Speed Operation
Opening speeds up to 1.8 m/s support efficient traffic flow and everyday facility operation.
Entry-Level Solution

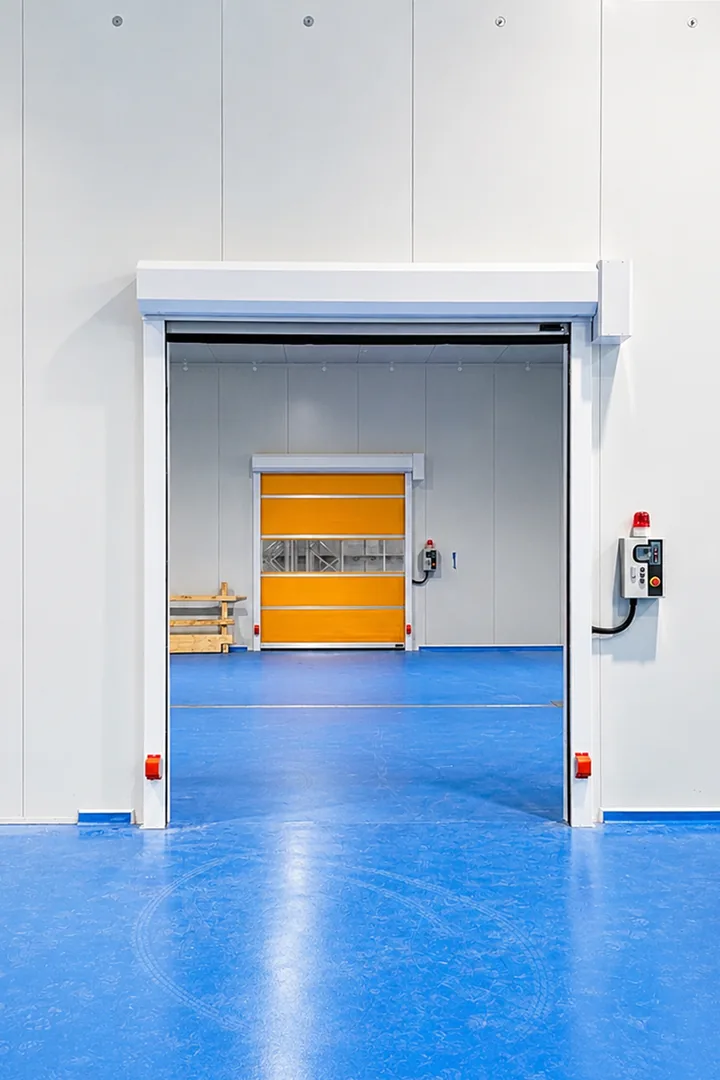

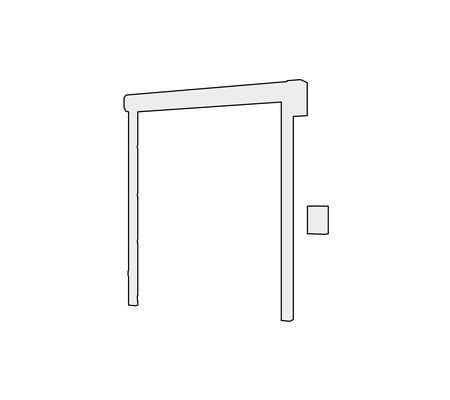

Essential | ES01
The Essential Series provides an economical rapid door solution for budget-focused projects and facilities requiring multiple doors. It is suited to practical day-to-day industrial operation where reliable affordability, simple installation and operational practicality are prioritised.
Key Benefits
- Cost-effective rapid access solution
- Suitable for smaller-scale or budget-driven projects
- Practical option for facilities requiring multiple doors
- Simple installation and operational functionality
Key Features
The ES01 provides a cost-effective rapid door solution for standard industrial and commercial applications requiring practical high-speed access.
Its simple PVC curtain system, servo-controlled operation and common safety options support everyday use where budget-conscious specification is required.
Cost-Effective Solution
Designed to provide rapid door performance for standard industrial and commercial applications.
Aluminium Reinforcement
Lightweight aluminium wind-resistant ribs improve curtain stability during operation.
Servo-Controlled System
Servo motor and controller system provide smooth positioning and reliable door movement.
Integrated Safety
Photoelectric sensors and optional safety edge systems support safe daily operation.
IP54 / IP65 Options
Industrial-rated motor and control options available for harsh operating environments.
Technical Specifications & Available Options
Technical specifications
| Recommended Door Size | Up to approx. 4.0 m W × 4.0 m H |
|---|---|
| Application | Internal and selected external openings |
| Operating Temperature | 0°C to +50°C, application dependent |
| Opening Speed | Up to 1.8 m/s |
| Closing Speed | Up to 1.0 m/s |
| Power Supply | 220 V / 1-phase, 380 V / 3-phase |
| Curtain Material | 0.8–0.9 mm PVC-coated fabric |
| Curtain Construction | Segmented replaceable curtain system |
| Reinforcement | Aluminium wind-resistant ribs |
| IP Rating | IP54 standard / IP65 optional |
Standard Door Colours

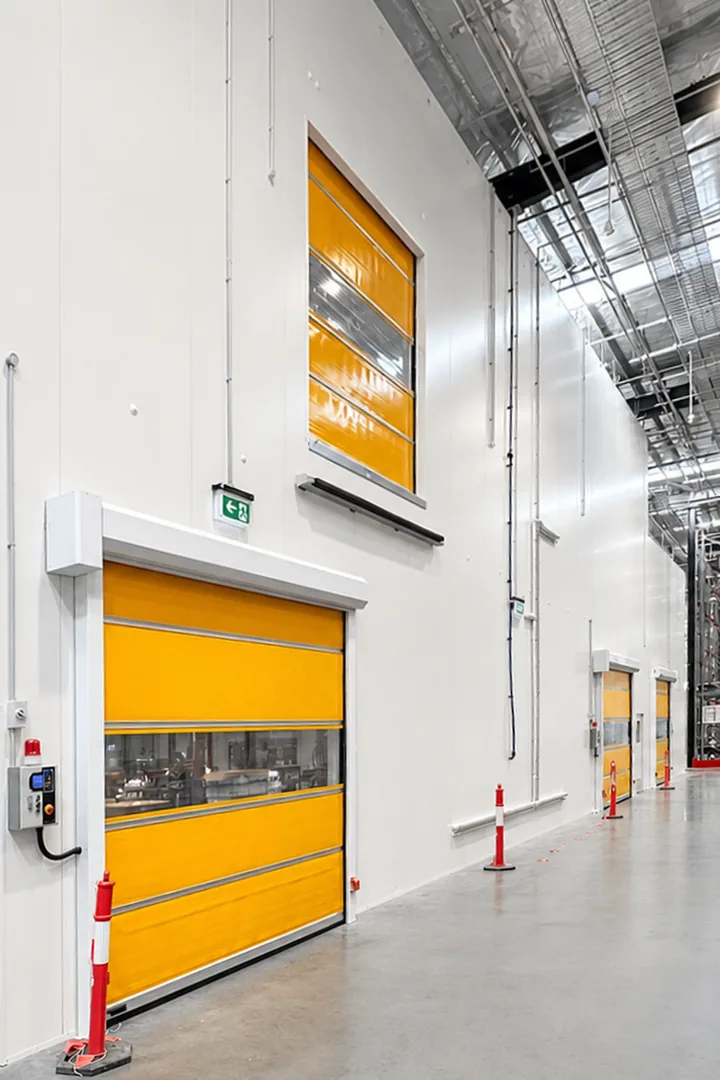

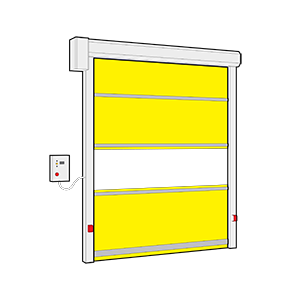

Yellow

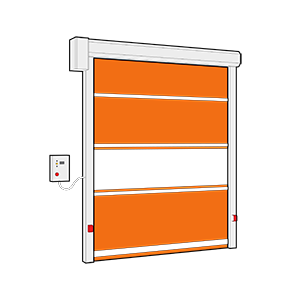

Orange

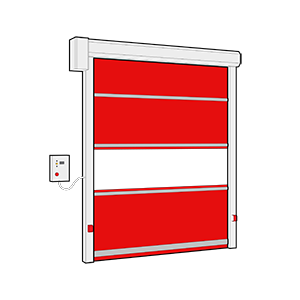

Red

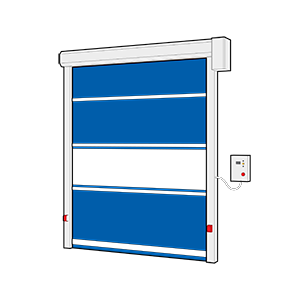

Blue

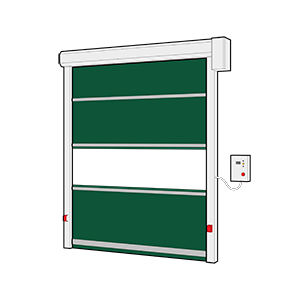

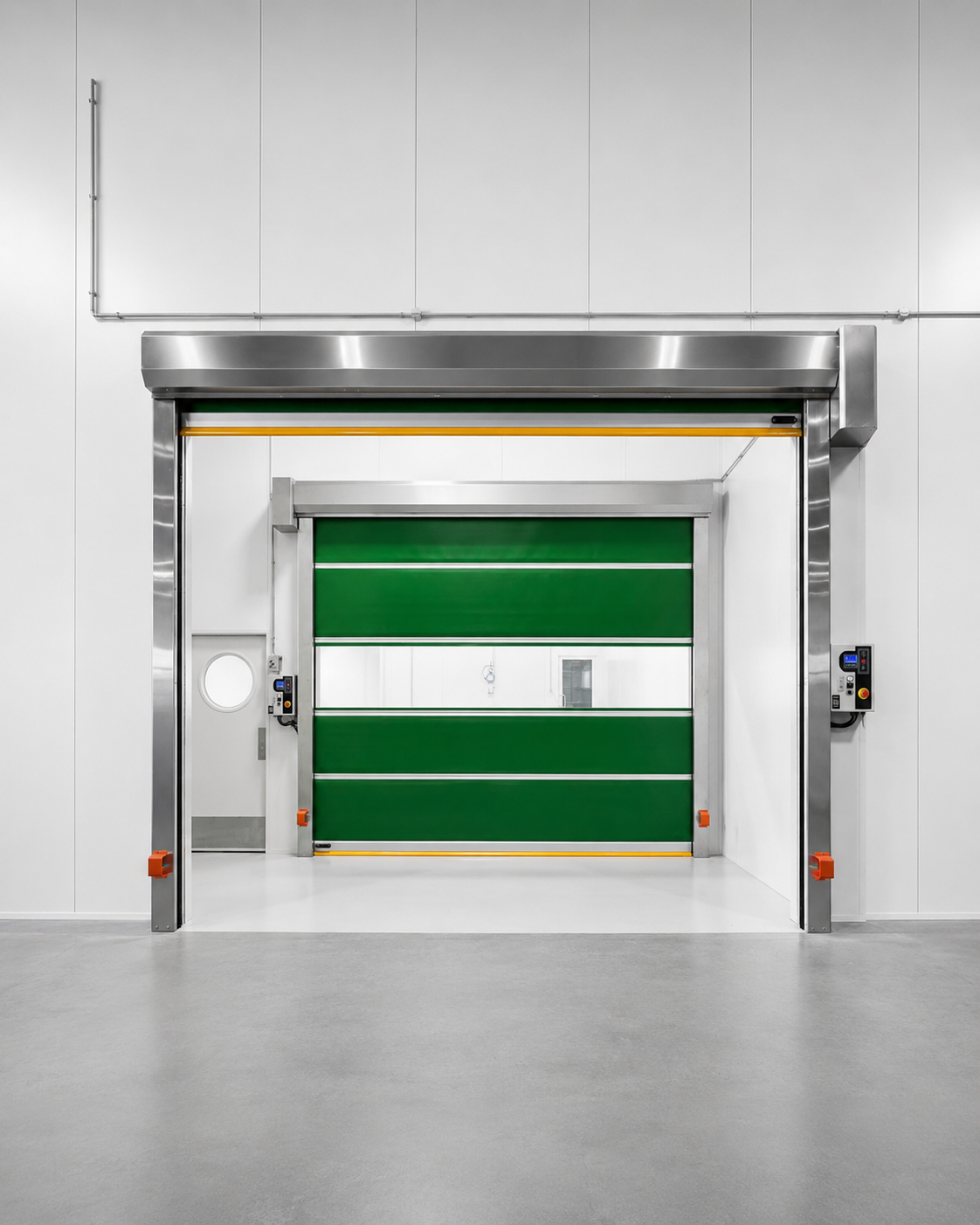

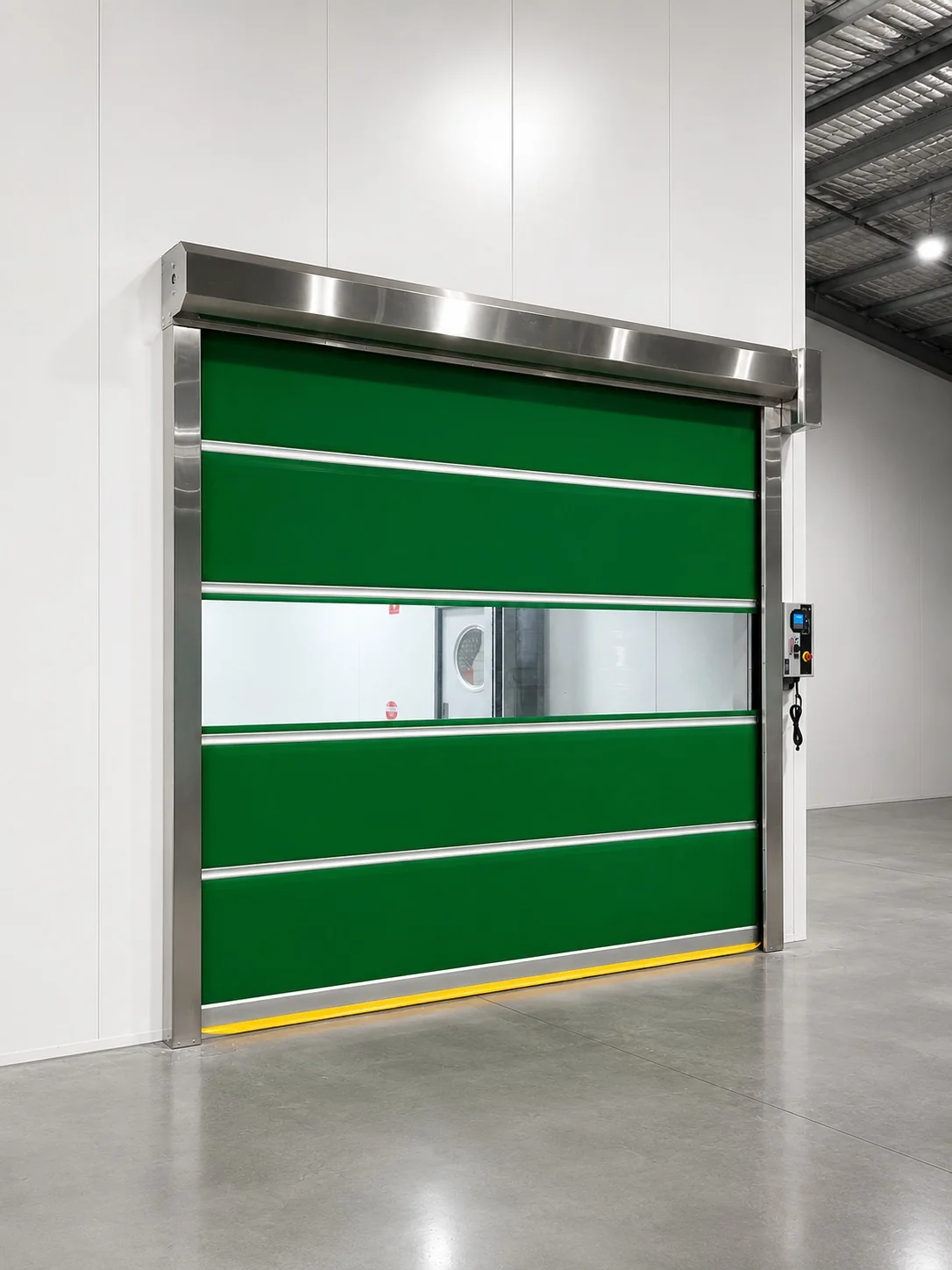

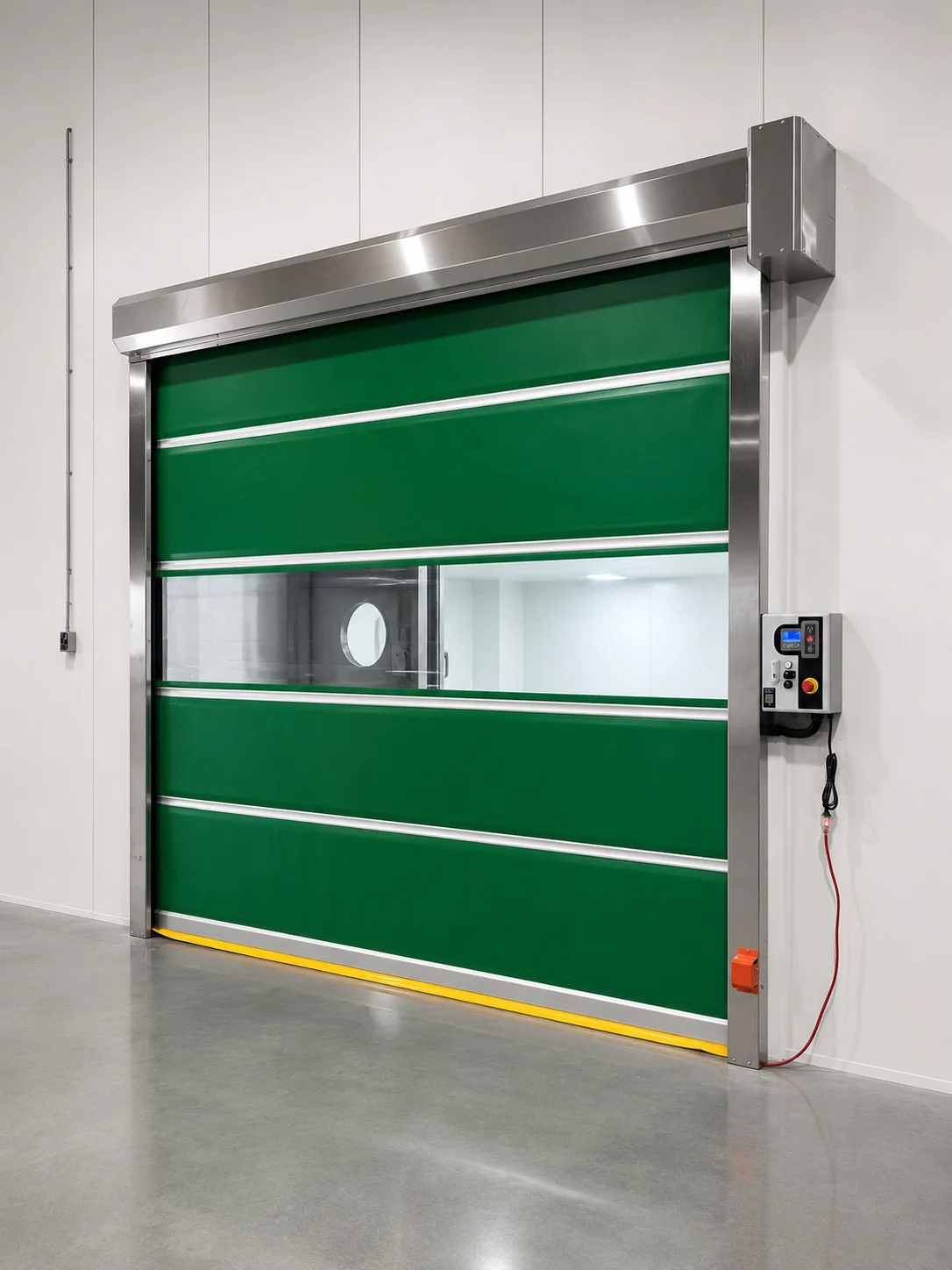

Green

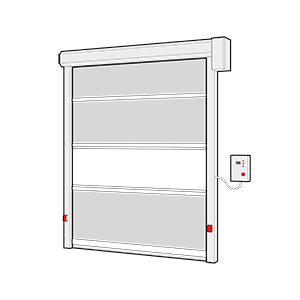

Grey

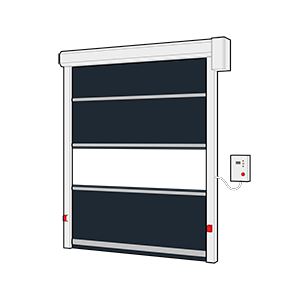

Black
Ready to configure your ES01?
Talk to our team about opening size, duty cycle, site conditions and activation requirements.
We’ll help specify a rapid door system suited to your operation.
