High-Speed Operation
Opening speeds up to 2.2 m/s support efficient traffic flow and reduce facility downtime.

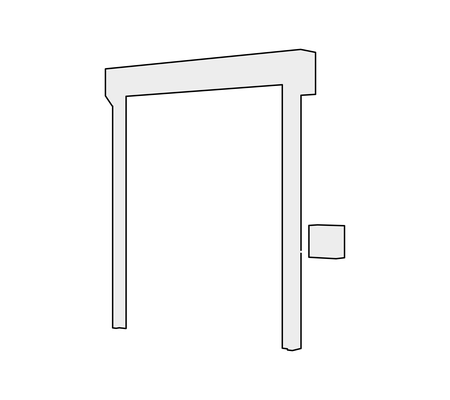

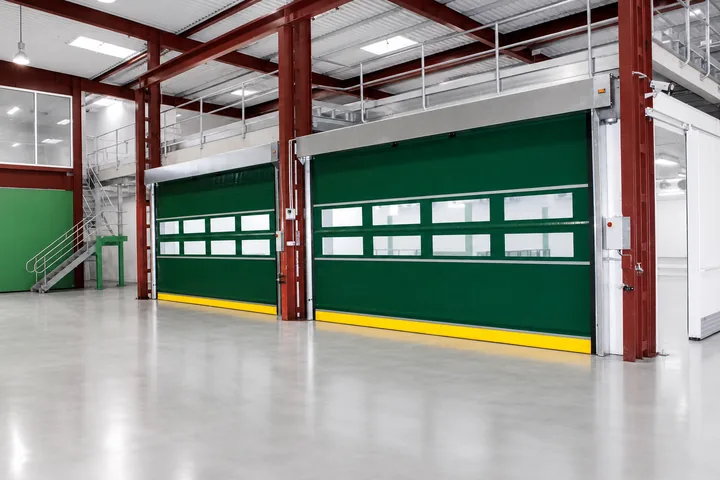

Industrial rapid door
Performance | PE01
Designed for frequent high-cycle use, the Performance Series is NBE’s most trusted rapid door solution. Fast opening speeds, durable construction and low-maintenance design make it ideal for warehouses, logistics and manufacturing environments.
Key Benefits
- NBE’s widely used and proven rapid door system
- Up to 2.2 m/s opening speed and 1.0 m/s closing speed
- Reliable low-maintenance operation with exceptional longevity
- Suitable for high-frequency industrial environments
Key Features
The PE01 combines reinforced industrial construction with a modular curtain system, supporting long-term durability, simplified maintenance and high-cycle industrial use.
Flexible fibreglass stiffeners improve impact absorption while modular curtain sections reduce downtime by allowing individual sections to be repaired or replaced independently.
Wind-Resistant
Reinforced door structure designed for exposed and demanding industrial openings.
Fibreglass Reinforcement
Flexible fibreglass stiffeners absorb impact and rebound under pressure for improved durability.
Modular Curtain System
Designed for efficiency, replaceable curtain sections simplify maintenance and reduce downtime during repairs.
IP54 / IP65 Options
Industrial-rated motor and control options available for harsh operating environments.
Integrated Safety
Safety edge and photoelectric sensors support safer, more reliable operation in high-traffic industrial areas.
Technical Specifications & Available Options
Technical specifications
| Recommended Door Size | Up to approx. 4.5 m W × 5.0 m H |
|---|---|
| Application | Internal / External |
| Operating Temperature | 0°C to +50°C |
| Opening Speed | Up to 2.2 m/s |
| Closing Speed | Up to 1.0 m/s |
| Power Supply | 240 V / 1-phase, 415 V / 3-phase |
| Curtain Material | Reinforced PVC-coated polyester |
| Curtain Construction | Segmented replaceable curtain design |
| Reinforcement | Steel pipe / Flexible fibreglass stiffeners |
| IP Rating | IP54 standard / IP65 optional |
Standard Door Colours

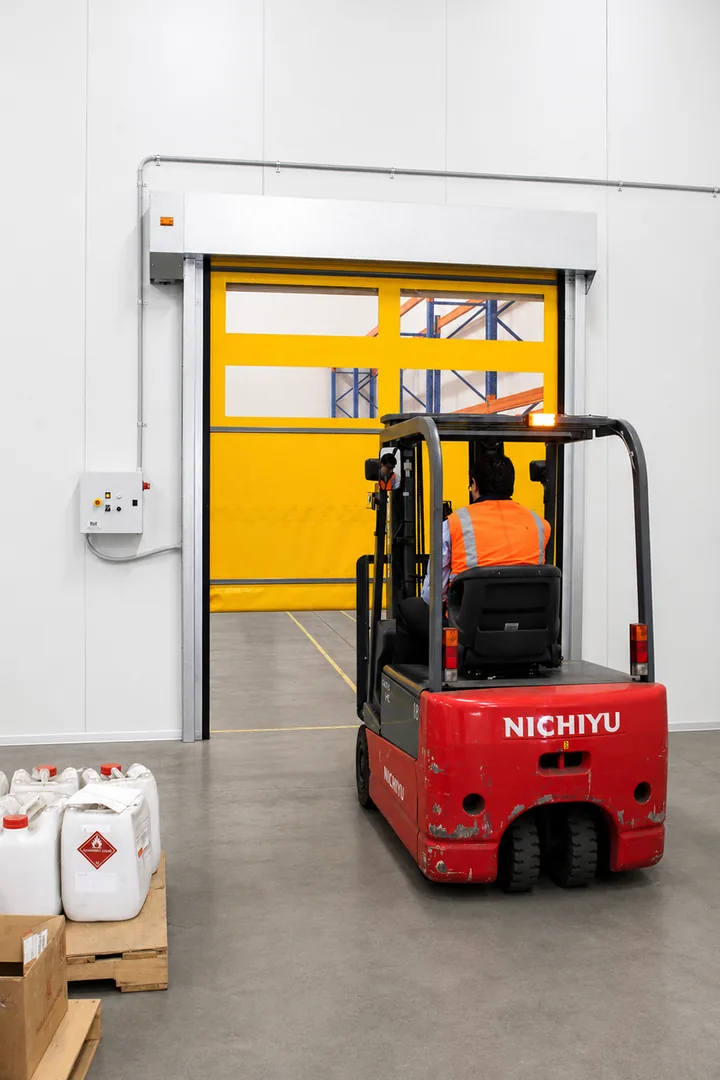

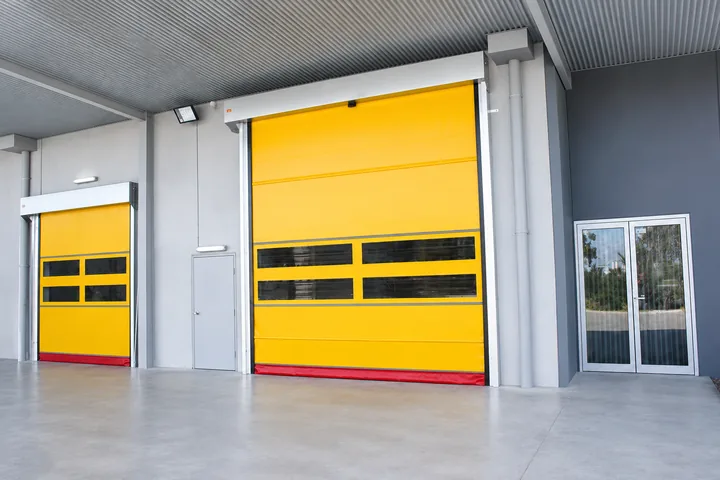

Yellow

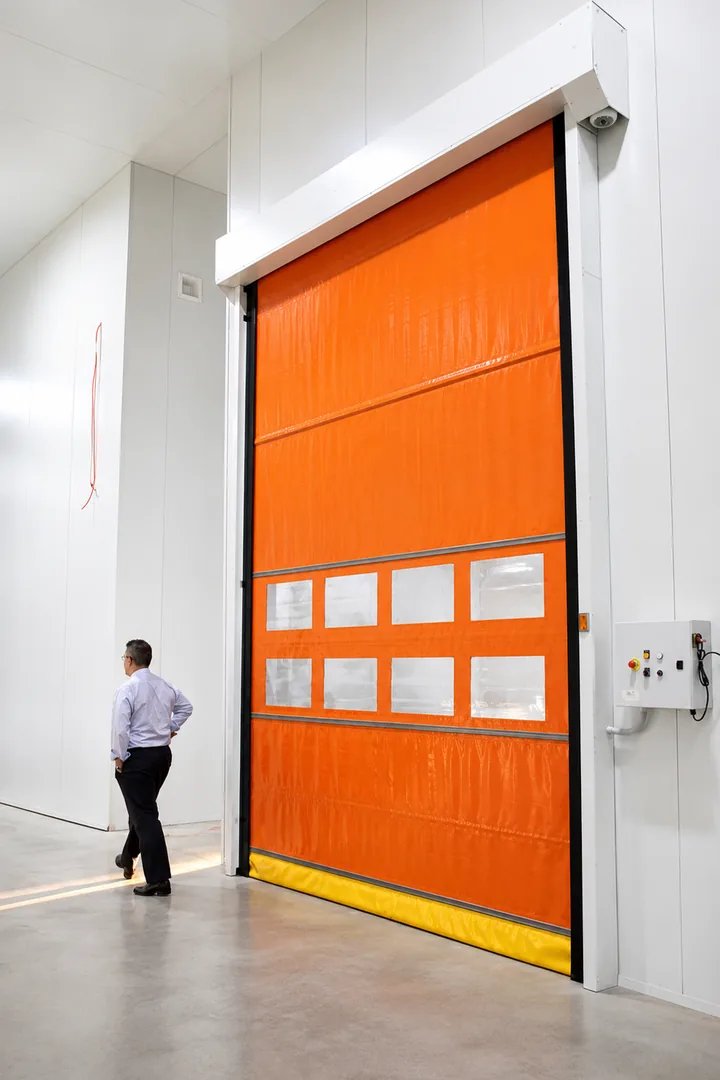

Orange

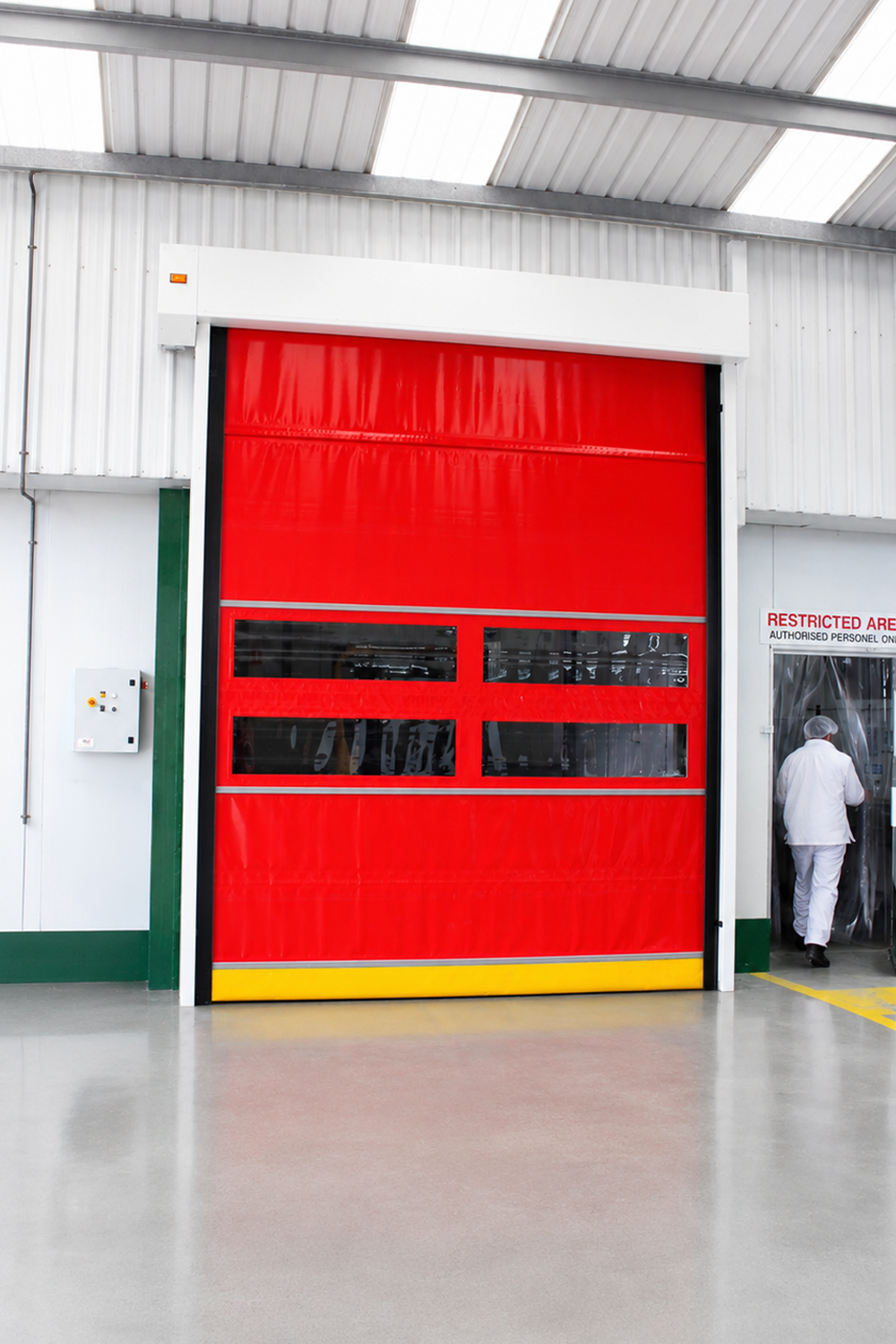

Red

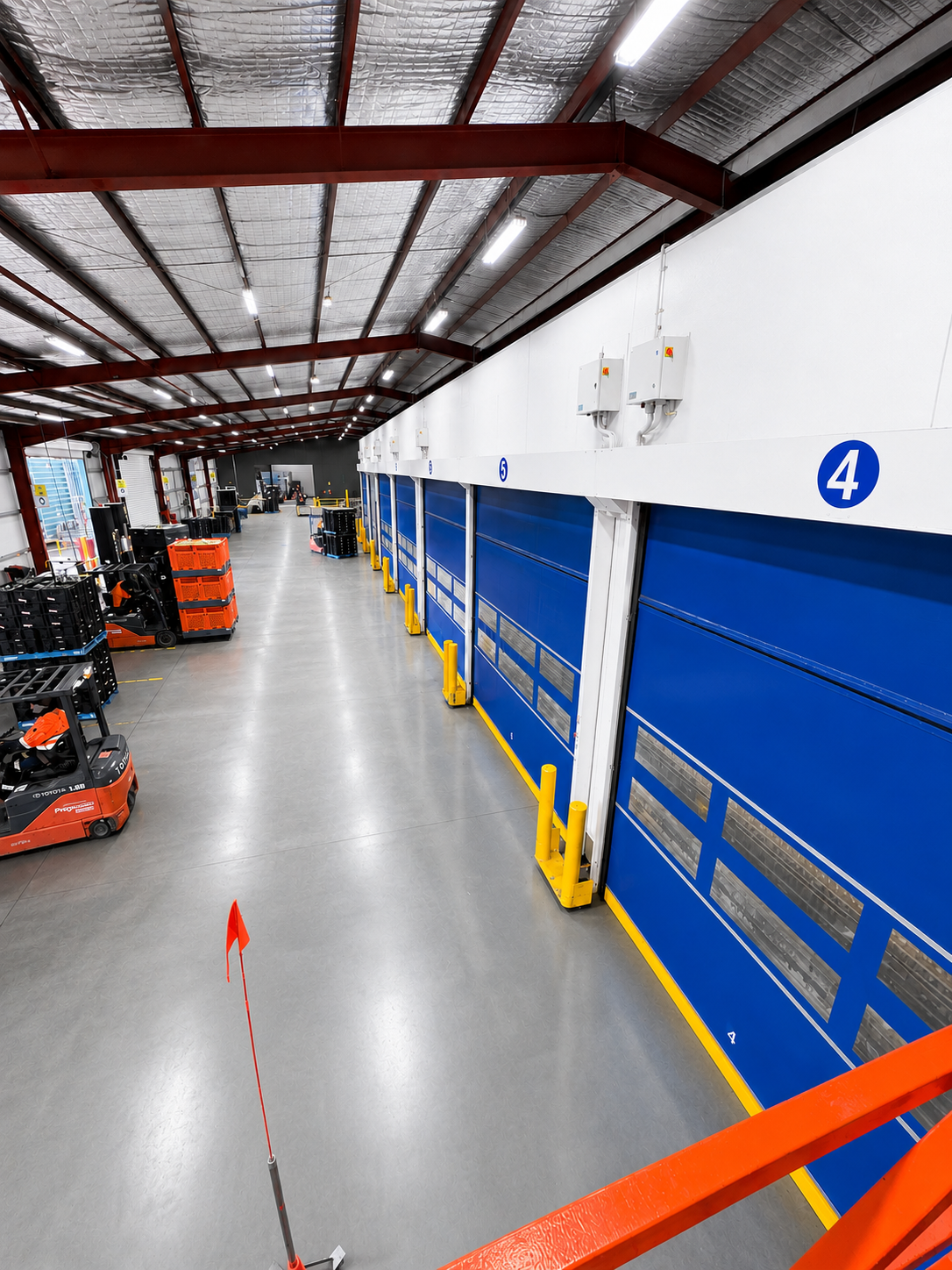

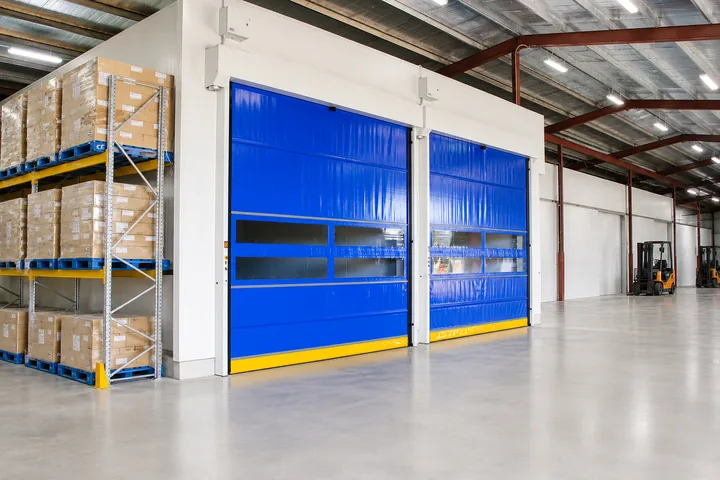

Blue
Green
Grey
Ready to configure your PE01?
Talk to our team about opening size, duty cycle, site conditions and activation requirements.
We’ll help specify a rapid door system suited to your operation.
